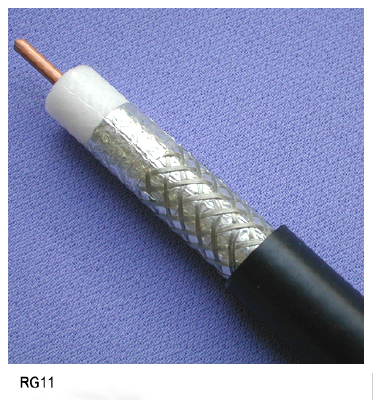

Features:
1. Application: The coaxial drop cables are applied to connecting the optical network units to subscribers and transmitting data, TV and computer signals with transmission features of broadband,high speed,low loss and dual directions.
2. Standards: Refer to the standards of drop cable from Commscope Co. in U.S.A.
3. Category &Transmission characteristics: 75Ω,2200MHz.
4. The braided shield, jacket or flooding compound and steel messenger can be added according to requirements.
5. Cut to order length and customised packaging solutions available.
Specifications:

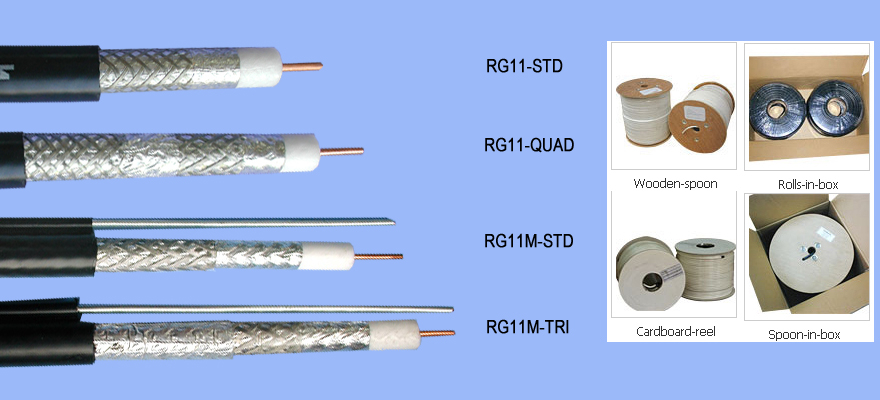

RG11M-STD 1.63mm(99.99%)BC 7.10 Foamed PE AL/PET/EMAA (50.7%)0.12mm*80TC 1.83mm Galvanized Steel 10.03mmPVC
RG11M-TRI 1.63mm(99.99%)BC 7.10 Foamed PE AL/PET/EMAA (50.7%)0.12mm*80TC AL/PET/AL 1.83mm Galvanized Steel 10.03mmPVC
RG11M-QUAD 1.63mm(99.99%)BC 7.10 Foamed PE AL/PET/EMAA (50.7%)0.12mm*80TC AL/PET/AL (50.7%)0.12mm*80TC
1.83mm Galvanized Steel 10.29mmPVC
Conductor material: BC,CCS,CCA avaiable;
Dielectric: Solid PE, Foamed PE, PVC, LSOH avaiable;
Foil shield: Al/Cu foil available;
Braid material: BC,TC,CCS,CCA,ALMG available;
Braid coverage: 30-96% available according to the detail;
Jacket: PE, PVC, LSOH available;
Package: Reel/Roll/Carton available, length available.
- Size: 0.04
- Place of Origin: China
- Brand Name: Sonata
- Model Number: RG11
- Weight: 25.000 kg
| TYPE | STD-SHIELD | TRI-SHIELD | QUAD-SHIELD | |||
| PHYSICAL DIMENSIONS | ||||||
| INNER CONDUCTOR | DIAMETER(mm) | 1.63 | ||||
| MATERIAL | Copper or Copper-Clad Steel | |||||
| INSULATION | DIAMETER(mm) | 7.11 | ||||
| MATERIAL | FOAMED-PE | |||||
| OUTER CONDUCTOR | INNER | AL FOIL | AL/PET/EMAA | |||
| DIAMETER | 7.29 | |||||
| BRAID | SIZE | 16x6xφ0.16 | 16x6xφ0.16 | 16x6xφ0.16 | ||
| MATERIAL | Copper, Tinned Copper or Al-Mg | |||||
| OUTER | AL FOIL | / | AL/PET/AL | AL/PET/AL | ||
| BRAID | SIZE | / | / | 16x4xφ0.16 | ||
| MATERIAL | Copper, Tinned Copper or Al-Mg | |||||
| MASSENGER | DIAMETER(mm) | 1.83 | ||||
| MATERIAL | Galvanized Steel | |||||
| JACKET | DIAMETER(mm) | 10.03 | 10.03 | 10.29 | ||
| MATERIAL | PVC or PE | |||||
| ADHESION FORCE＞(Sample of 150mm length) | 20N | |||||
| ELECTRICAL CHARACTERISTICS | ||||||
| CHARACTERISTIC IMPEDANCE(Ω) | 75±2.5 | |||||
| RETURN LOSS≥dB | VHF | 22 | ||||
| UHF | 20 | |||||
| CAPACITANCEpF/m) | 52.8 | |||||
| VELOCITY OF PROPAGATION | 85% | |||||
| ATTENUATION(20℃,dB/100m) | ||||||
| 55MHz | 3.15 | |||||
| 211MHz | 6.23 | |||||
| 300MHz | 7.38 | |||||
| 400MHz | 8.53 | |||||
| 500MHz | 9.51 | |||||
| 550MHz | 9.97 | |||||
| 750MHz | 11.97 | |||||
| 865MHz | 13.05 | |||||
| 1000MHz | 14.27 | |||||
| 1450MHz | 17.7 | |||||
| 2050MHz | 21.25 | |||||
| 2200MHz | 22.45 | |||||
| PACKAGING INFORMATION | ||||||
| PACKAGE TYPE (REEL PACKAGE:DxdxL)cm | NON-MESSENGER | φ44xφ11x25 | φ44xφ11x25 | φ44.5xφ11x25 | ||
| MESSENGER | φ55xφ16x23 | φ55xφ16x23 | φ55xφ16x25 | |||
| LENGTH | 305m/Reel | |||||
| NOTE 1. The tollerance of attenuation is not excess 5% of the nominal value. | ||||||
| 2. AL-----Alumium Foil | PET----Mylar | EMAA-----Bonded film | ||||
