Features:
1. Application: The coaxial drop cables are applied to connecting the optical network units to subscribers and transmitting data, TV and computer signals with transmission features of broadband,high speed,low loss and dual directions.
2. Standards: Refer to the standards of drop cable from Commscope Co. in U.S.A.
3. Category &Transmission characteristics: 75Ω,2200MHz.
4. The braided shield, jacket or flooding compound and steel messenger can be added according to requirements.
5. Cut to order length and customised packaging solutions available.
Specifications:

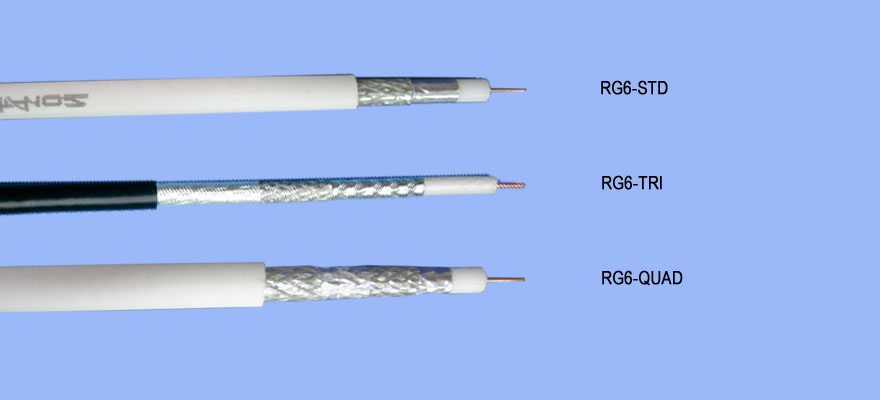

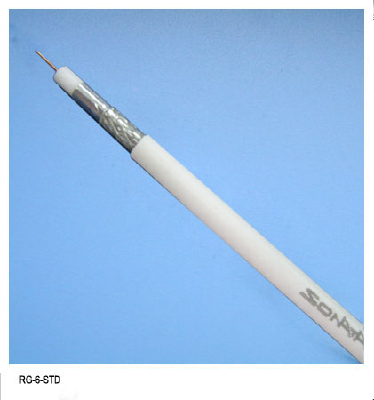

RG6-STD 1.0mm BC 4.60mm Foamed PE 4.75mm AL/PET/EMAA (51%)0.12mm*64TC 6.91mmPVC
RG6-TRI 1.0mm BC 4.60mm Foamed PE 4.75mm AL/PET/EMAA (51%)0.12mm*64TC AL/PET/AL 7.06mmPVC
RG6-QUAD 1.0mm BC 4.60mm Foamed PE 4.75mm AL/PET/EMAA (51%)0.12mm*64TC AL/PET/AL (51%)0.12mm*64TC
7.62mmPVC
Conductor material: BC,CCS,CCA avaiable;
Dielectric: Solid PE, Foamed PE, PVC, LSOH avaiable;
Foil shield: Al/Cu foil available;
Braid material: BC,TC,CCS,CCA,ALMG available;
Braid coverage: 30-96% available according to the detail;
Jacket: PE, PVC, LSOH available;
Package: Reel/Roll/Carton available, length available.
- Size: 0.037
- Place of Origin: China
- Brand Name: Sonata
- Model Number: RG6
- Weight: 25.000 kg
| TYPE | STD-SHIELD | TRI-SHIELD | QUAD-SHIELD | |||
| PHYSICAL DIMENSIONS | ||||||
| INNER CONDUCTOR | DIAMETER(mm) | 1.02 | ||||
| MATERIAL | Copper or Copper-Clad Steel | |||||
| INSULATION | DIAMETER(mm) | 4.57 | ||||
| MATERIAL | FOAMED-PE | |||||
| OUTER CONDUCTOR | INNER | AL FOIL | AL/PET/EMAA | |||
| DIAMETER | 4.75 | |||||
| BRAID | SIZE | 16x4xφ0.16 | 16x4xφ0.16 | 16x4xφ0.16 | ||
| MATERIAL | Copper, Tinned Copper or Al-Mg | |||||
| OUTER | AL FOIL | / | AL/PET/AL | AL/PET/AL | ||
| BRAID | SIZE | / | / | 16x3xφ0.16 | ||
| MATERIAL | Copper, Tinned Copper or Al-Mg | |||||
| MASSENGER | DIAMETER(mm) | 1.3 | ||||
| MATERIAL | Galvanized Steel | |||||
| JACKET | DIAMETER(mm) | 6.91 | 7.06 | 7.62 | ||
| MATERIAL | PVC or PE | |||||
| ADHESION FORCE＞(Sample of 150mm length) | 20N | |||||
| ELECTRICAL CHARACTERISTICS | ||||||
| CHARACTERISTIC IMPEDANCE(Ω) | 75±3 | |||||
| RETURN LOSS≥dB | VHF | 22 | ||||
| UHF | 20 | |||||
| CAPACITANCEpF/m) | 53.2 | |||||
| VELOCITY OF PROPAGATION | 83% | |||||
| ATTENUATION(20℃, dB/100m) | ||||||
| 55MHz | 5.25 | |||||
| 211MHz | 10 | |||||
| 300MHz | 11.64 | |||||
| 400MHz | 13.61 | |||||
| 500MHz | 15.09 | |||||
| 550MHz | 16.08 | |||||
| 750MHz | 18.54 | |||||
| 865MHz | 20.01 | |||||
| 1000MHz | 21.49 | |||||
| 1450MHz | 26.6 | |||||
| 2050MHz | 31.9 | |||||
| 2200MHz | 33.8 | |||||
| PACKAGING INFORMATION | ||||||
| PACKAGE TYPE (REEL PACKAGE:DxdxL)cm | NON-MESSENGER | φ30xφ9x29 | φ32xφ9x29 | φ37xφ9x21 | ||
| MESSENGER | φ36xφ11x32 | φ36xφ11x32 | φ44xφ11x25 | |||
| LENGTH | 305m/Reel | |||||
| NOTE 1. The tollerance of attenuation is not excess 5% of the nominal value. | ||||||
| 2. AL--Alumium Foil | PET--Mylar | EMAA--Bonded film | ||||
